Taking Continuous Delivery to the Next Level: GitLab CI/CD + AWS

Introducing GitLab with AWS: how to build your Continuous Delivery from scratch.

Image for post
Image for post

Overview

Outcome

A system that, for every project on GitLab, sets up automatically a continuous delivery pipeline for you.

Amazon S3

Create the bucket

Why “stage”? Well, since we need custom subdomains, we have to map a wildcard domain name to our CloudFront distribution; it’s better to circumscribe this behavior, and leave free the first level subdomain.

Image for post
Image for post
Creating the S3 Bucket

Configure the bucket for website hosting

Image for post
Image for post

Change the Bucket policies

Image for post
Image for post
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "AddPerm",
"Effect": "Allow",
"Principal": "*",
"Action": "s3:GetObject",
"Resource": "arn:aws:s3:::stage.yourdomain.com/*"
}
]
}

IAM

Create a group

Create the user

Image for post
Image for post
Image for post
Image for post
Image for post
Image for post

GitLab CI/CD

In order to avoid configuring every future project, you can put the keys in a group, so that all projects inside it can have access to them.

Create the group

Create the environment variables

Image for post
Image for post

Create a pilot project

Create the .gitlab-ci.yml

variables:
S3_BUCKET: "stage.yourdomain.com"
BUILD_COMMAND: "npm run build"
DIST_DIR: "./dist"
stages:
- build
- deploy
build:
stage: build
image: debian:latest
...
deploy:
stage: deploy
image: python:latest
...
aws s3 sync ${DIST_DIR} s3://${S3_BUCKET}/${CI_PROJECT_NAME}/${CI_COMMIT_REF_NAME} --delete

Start the pipeline

Image for post
Image for post

Route 53

Create an hosted zone

Image for post
Image for post
Image for post
Image for post

Certificate Manager

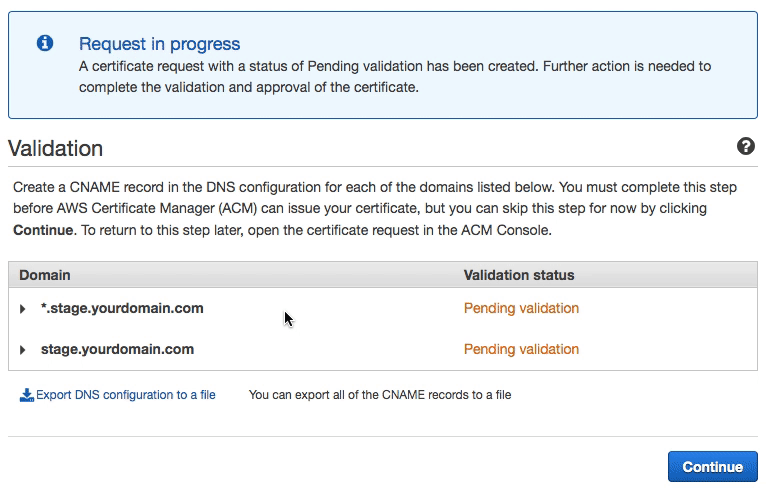

Request a certificate

Image for post
Image for post

CloudFront

Create the CloudFront Distribution

Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post

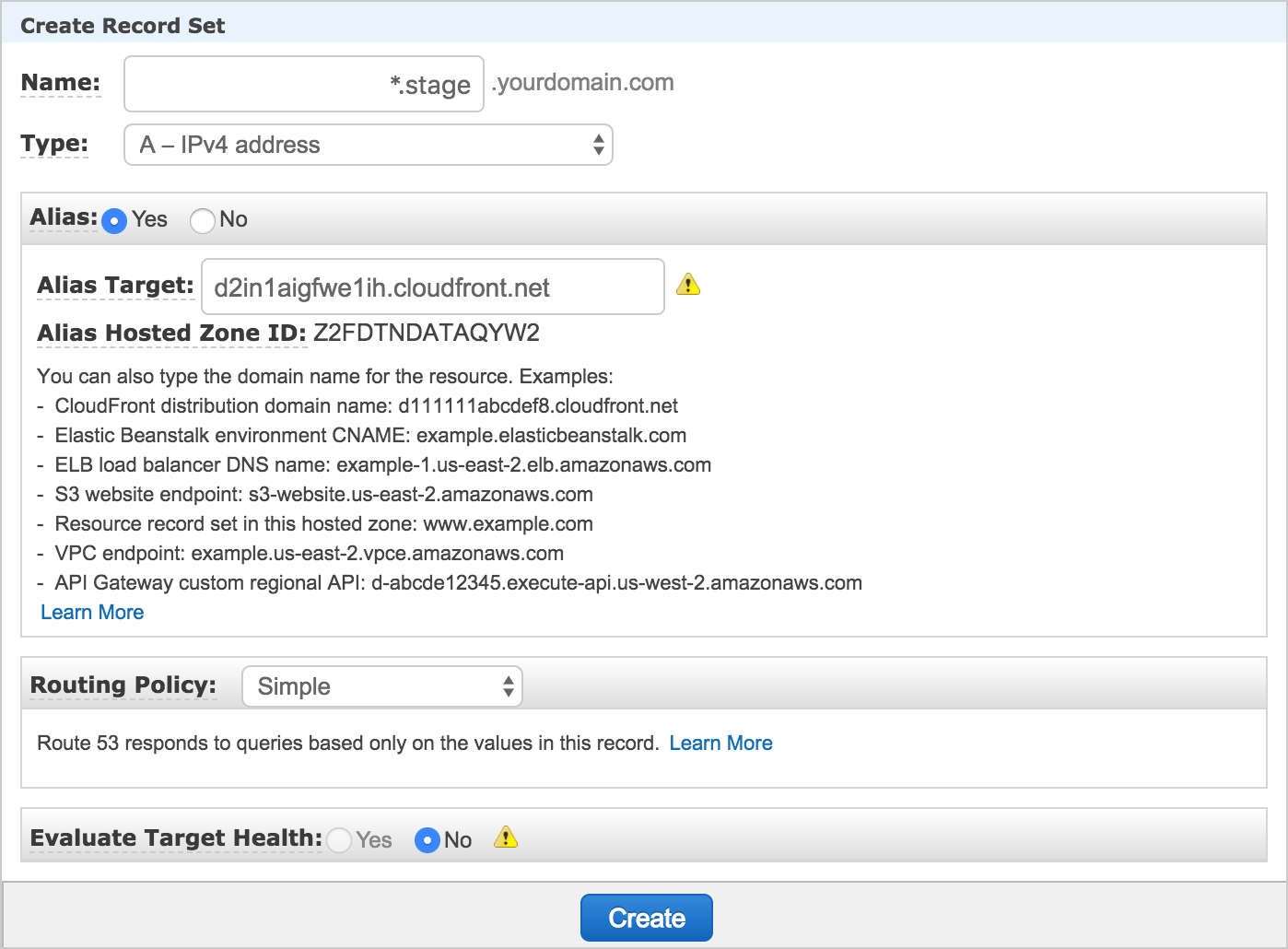

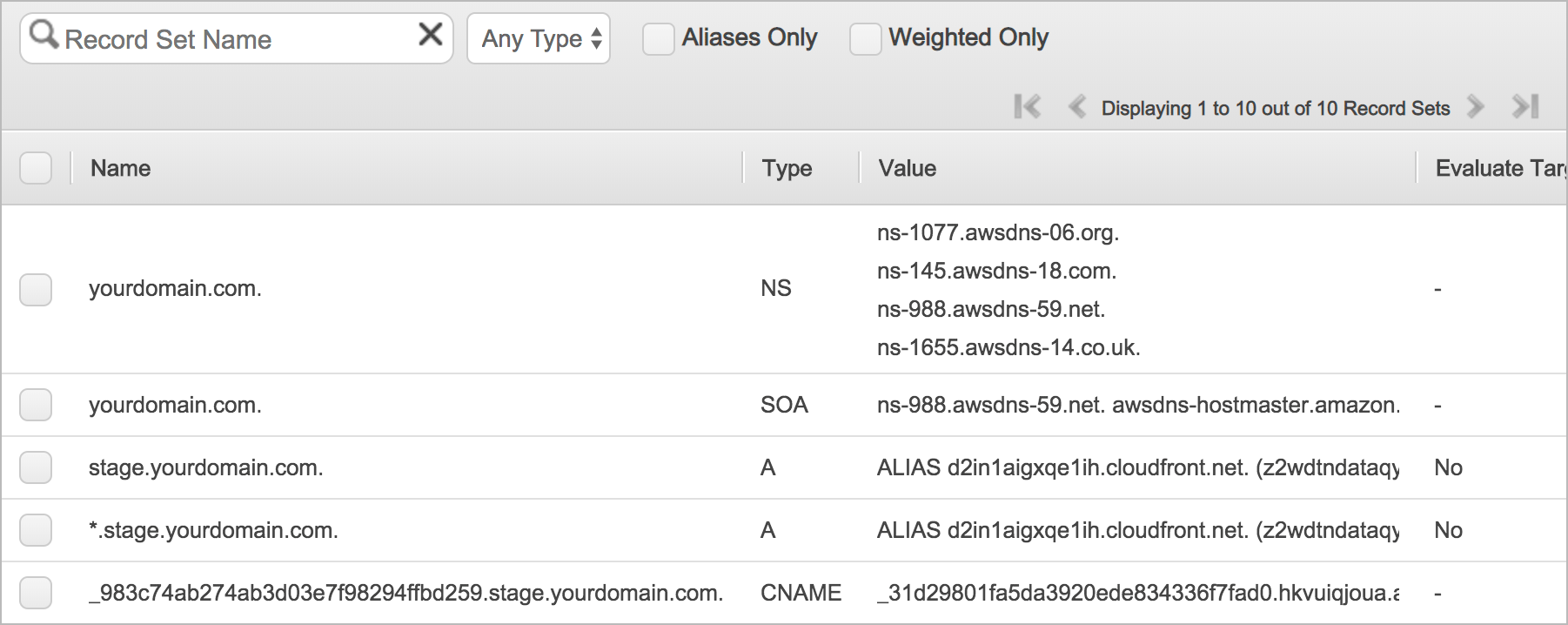

Add the alias record on Route 53

Image for post
Image for post
Image for post
Image for post

Lambda@Edge

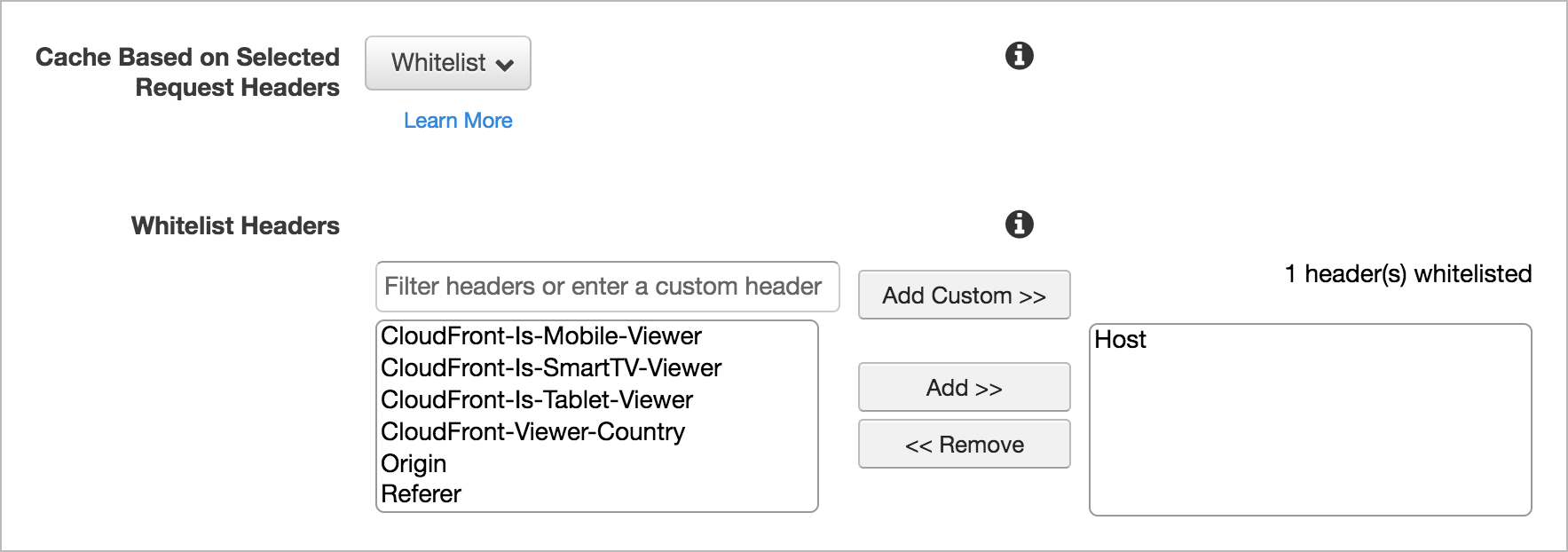

Whitelist the Host header

Image for post
Image for post

Create the Lambda@Edge

Image for post
Image for post

The function code

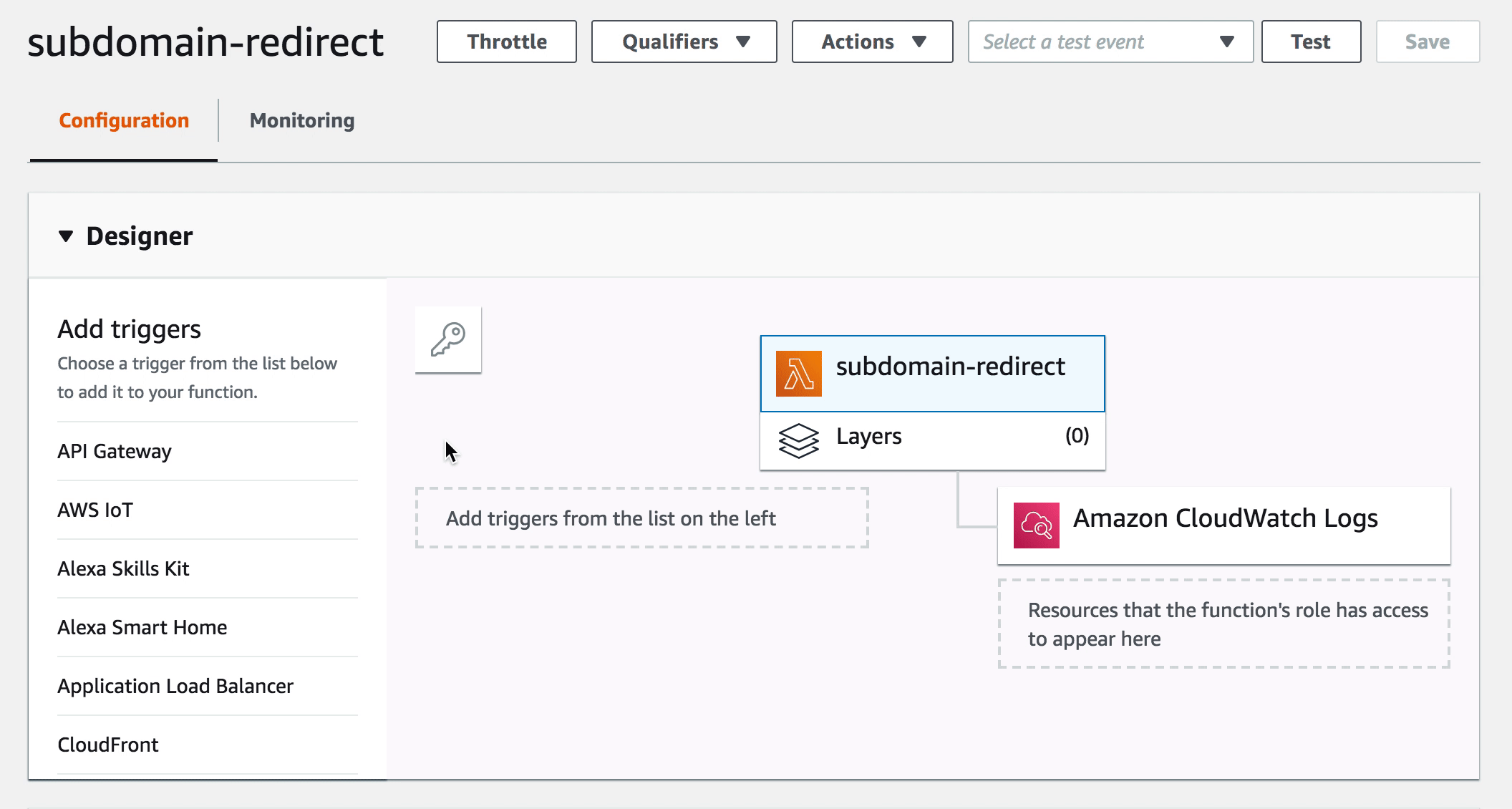

Create the trigger

Image for post
Image for post

GitLab Environments

With Environments you have full control of your project delivery.

Configuring environments

deploy:master:
<<: *deploy
only:
- master
...
deploy:branches:
<<: *deploy
only:
- branches
- tags
except:
- master
...
...
environment:
name: ${CI_COMMIT_REF_NAME}
url: https://${CI_PROJECT_NAME}.${S3_BUCKET}
on_stop: clean
aws s3 rm s3://${S3_BUCKET}/${CI_PROJECT_NAME}/${CI_COMMIT_REF_NAME} --recursive

Invalidate the cache

aws cloudfront create-invalidation --distribution-id ${DISTRIBUTION_ID} --paths "/*"

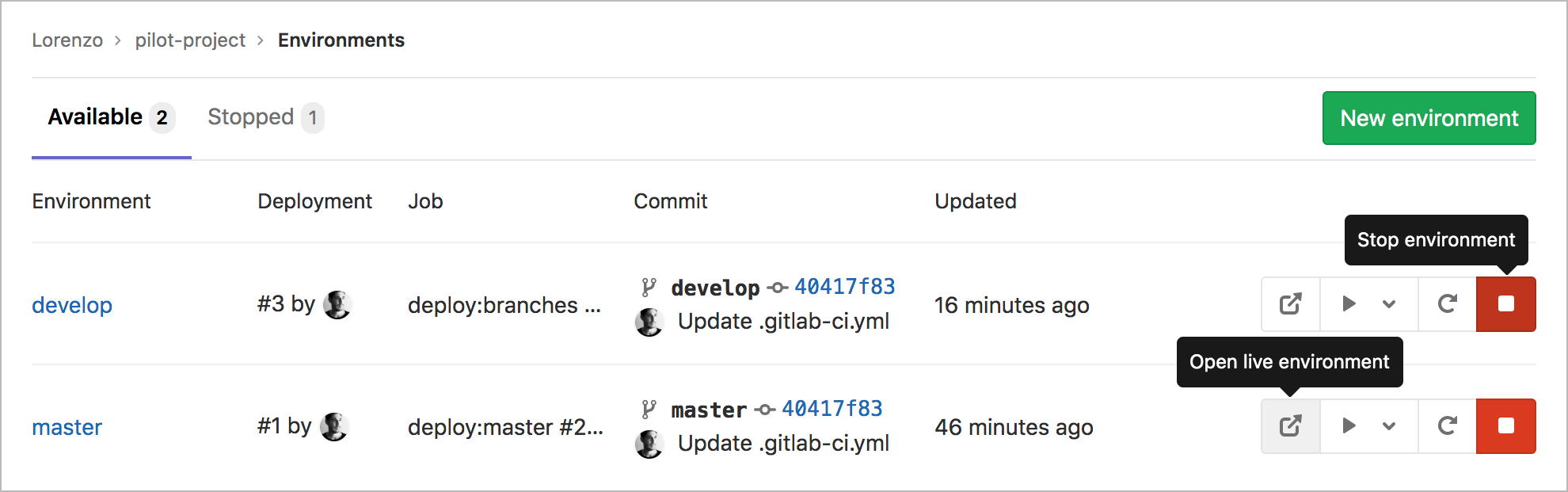

Create the environments

Image for post
Image for post

Conclusion
